BA SERIES BEVEL GEAR BOX

Keywords:

Category:

MULTI-TURN BEVEL GEAR BOX

（Domestic Standard Type）BA SERIES BEVEL GEAR BOX

Email:

boho@china-boho.com

The rotary valve actuator is an essential and indispensable component in the industrial sector, widely used in various fluid control systems. Its primary function is to precisely control the opening and closing of valves via the actuator, enabling seamless fluid flow control as well as fine-tuned flow regulation. This article will provide a detailed overview of the technical features, operational principles, and practical applications of rotary valve actuators.

Product Inquiry

Related Products

Product Description

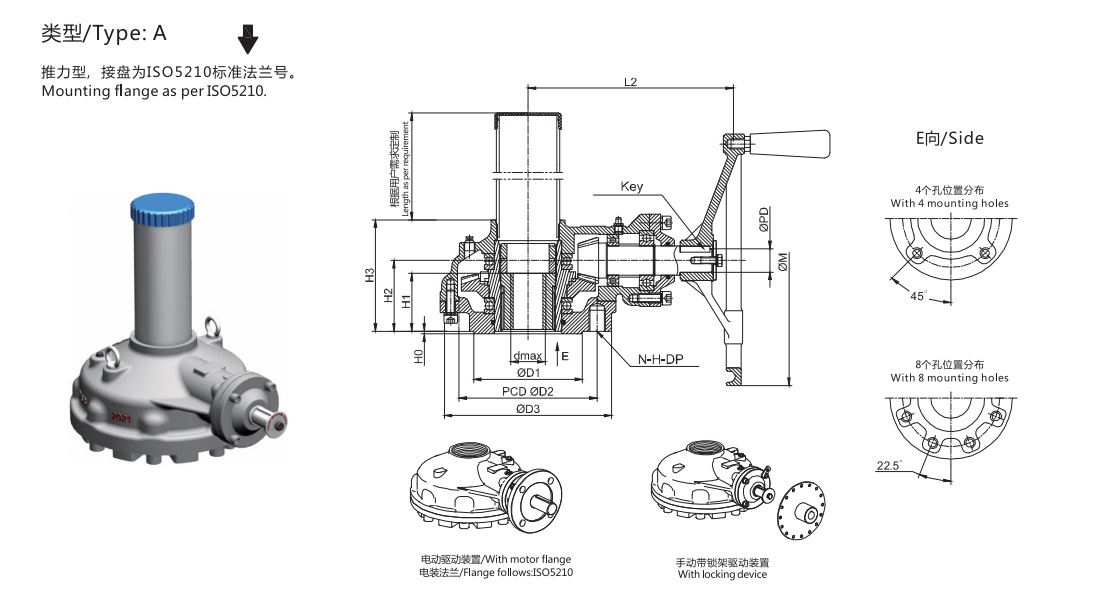

Type	Para. Model	Technical Parameters															Basa Part					Extermal at						Handwreel
		Standard flangeacc.IS05211		Optional Mountingacc.IS05211		Ratio		Input Nm		Rating Output Nm		M.A.+10%	Max.Bore dia. mm		Max. Thrust KN	Weight Kg	D1	P.C.D		D3	H0	H1	H₂	H3	L2	PD	Key
																		D2	N-H-DP									M
A	BA-000	F10			2.5:1		105		220		2.1	22		75		9	70	102	4-M10-15	125	2	47	70	104	198	26	8	250
	B-000	F12	F10		3:1		140		350		2.5	2B		13		12	85	125	44M12-18	150	3	49	70	113	207	26	8	250
	BA00	F14	F12		3:1		220		550		2.5	36		127		18	100	140	4-M16-24	175	3	58	78	124:	238	28	8	300
	BA-0	F16	F14		3.6:1		290		900		3.1	42		141		23	130	165	4420-30	210	3	69	85	133	255	28	8	300
	BA-01	F20	F14F16-F25		4.1:1		345		1200		3.5	50		190		35	140	205	8M16-24	250	4	9	87	145	276	32	10	400
	BA-1	F25	F16F20		4.5:1		475		1800		3.8	50		268		45	200	254	8-M16-24	295	4	78	94	162	311	32	10	480
	BA-2	F30	F25		5.2:1		640		2800		4.4	60		308		80	230	298	84M20-30	350	4	103	133	208	380	32	10	520
	BA-3	F35	F25F30		5.7:1		730		3500		4.B	80		402		43	280	356	8-M30-45	415	5	146	149	246B	442	38	10	600
	BAA-3	F35	F30		20:1		415		6000		14.5	95		986		250	280	356	8M3045	415	5	160	161	301	551	38	10	600

Rotary Valve Actuator: Technical Analysis and Application Overview

I. Technical Features

The rotary valve actuator boasts several key technical features, including high-precision control, highly efficient operation, and exceptional safety and reliability. Among these, high-precision control stands out as one of its core attributes, enabling accurate valve opening and closing to maintain stable operation of the fluid system. Additionally, the device incorporates advanced transmission technology, ensuring efficient performance while significantly reducing energy consumption. Meanwhile, its robust safety and reliability features have made it widely adopted, effectively mitigating potential hazards such as leaks.

2. Operating Principle

The working principle of the rotary valve actuator relies primarily on the coordinated operation of components such as the electric motor, gearbox, and transmission mechanism. When the motor starts, the gearbox reduces the rotational speed while simultaneously increasing torque. This mechanical power is then transmitted via the transmission system to the valve, enabling it to open and close. Throughout this process, sensors continuously monitor the valve's position and operational status, allowing the control system to maintain precise regulation.

3. Application Status

Rotary valve actuators are widely used in industrial sectors such as oil, chemical, power, and metallurgy. In the oil and chemical industries, these devices control a variety of fluid media, including gases, liquids, and steam. In the power industry, rotary valve actuators manage fluid systems in equipment like boilers and generator sets. Additionally, they find extensive applications in other industries, including metallurgy and water treatment.

IV. Conclusion

Overall, rotary valve actuators are indispensable and critical components in modern industrial applications. Their key features—such as high-precision control, highly efficient operation, and exceptional safety and reliability—have enabled these devices to be widely adopted across various fluid control systems. As industrial technology continues to advance, rotary valve actuators will undergo continuous innovation and upgrades, further contributing to the growth and evolution of the industrial sector.
